Description
High-Frequency Signal Integrity – Clean Wall Integration – Durable Construction
Product Specifications
Brand: Schneider Electric
Model: Vivace Series

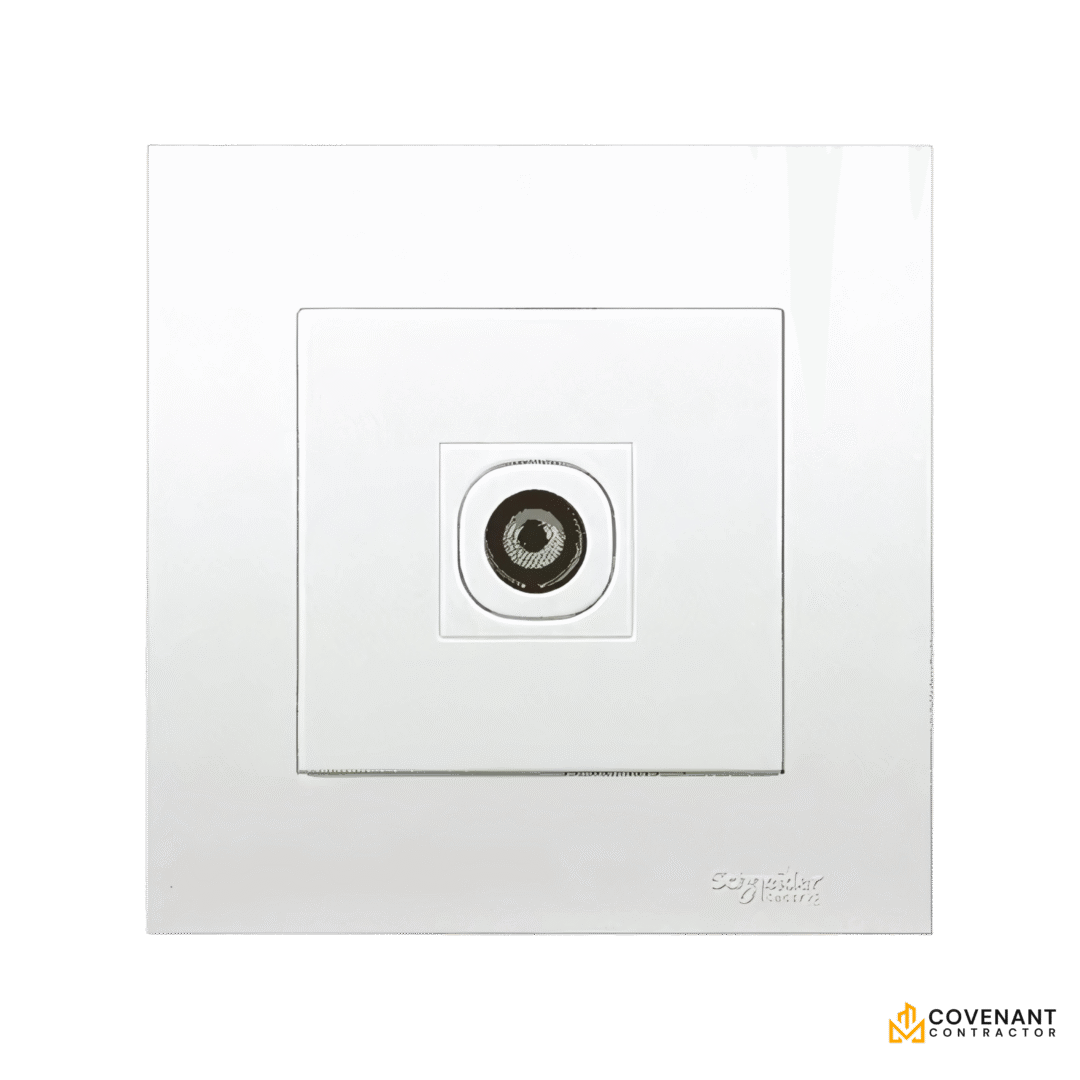

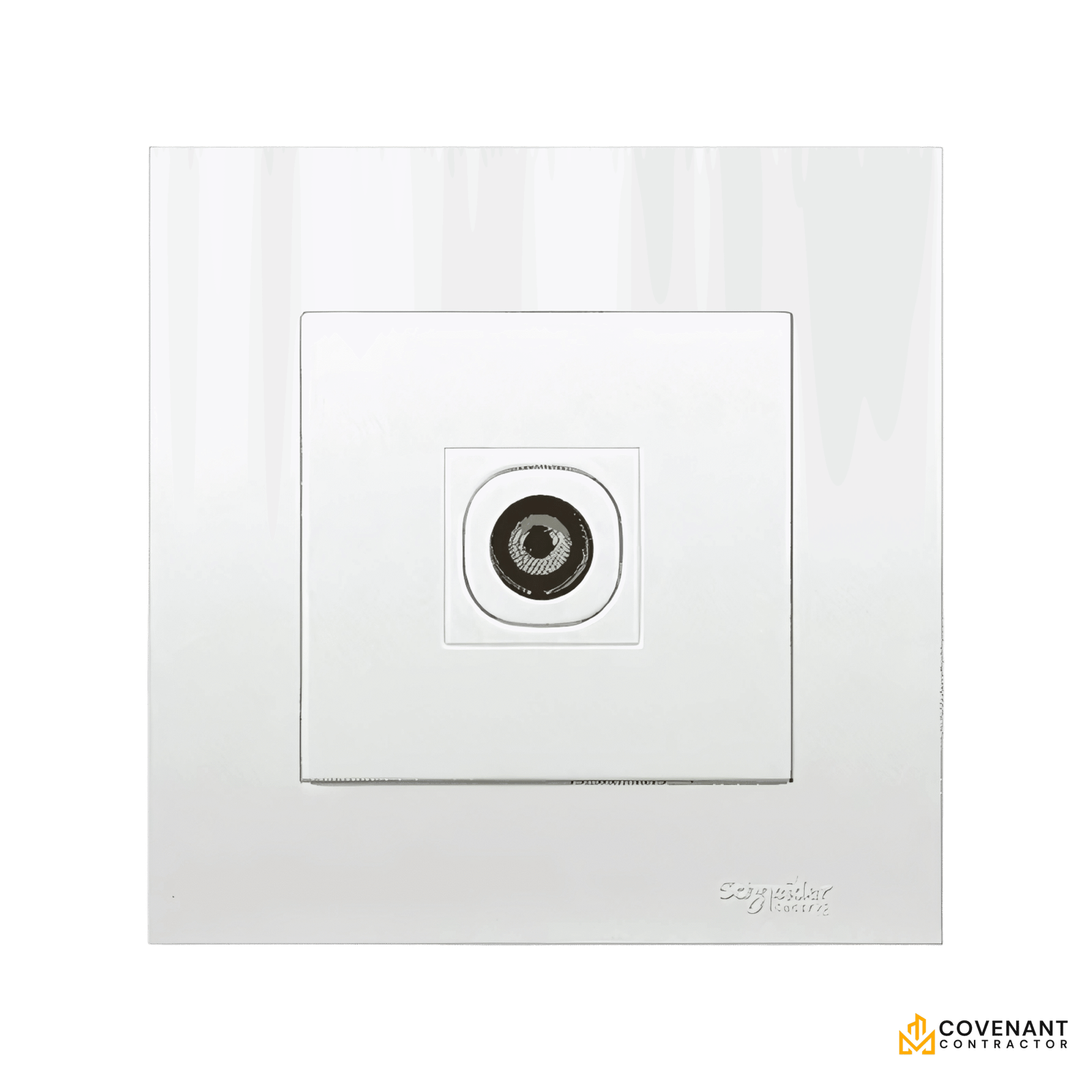

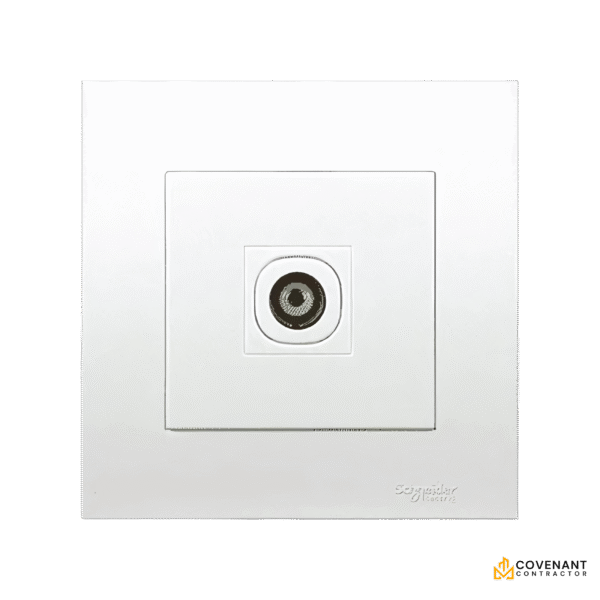

Type: Coaxial TV Socket (F-Type)
Impedance: 75Ω
Frequency Range: 5-862MHz (CATV/DAB/TV)
Insertion Loss: ≤1.5dB @ 100MHz
Return Loss: ≥20dB
Material: Zinc alloy body + Polycarbonate faceplate
Color: White (Ivory/Chrome options)
Certifications: CE, ROHS, EN 50173-1
Key Features
✔ Signal Integrity: Gold-plated center contact
✔ Universal Compatibility: PAL/SECAM/NTSC systems
✔ Tool-Less Installation: Push-fit F-connector termination
✔ Interference Shield: Double-layer EMI protection
✔ Aesthetic Finish: Flush-mount screwless design
Technical Performance
Voltage Standing Wave Ratio (VSWR): ≤1.5:1
Shielding Effectiveness: ≥90dB @ 1GHz
Contact Resistance: ≤10mΩ
Operating Temp: -40°C to +70°C
