Description
Triple-Circuit Switching – High-Capacity Design – Professional-Grade Performance
Product Specifications
Brand: Schneider Electric
Model: Vivace Series

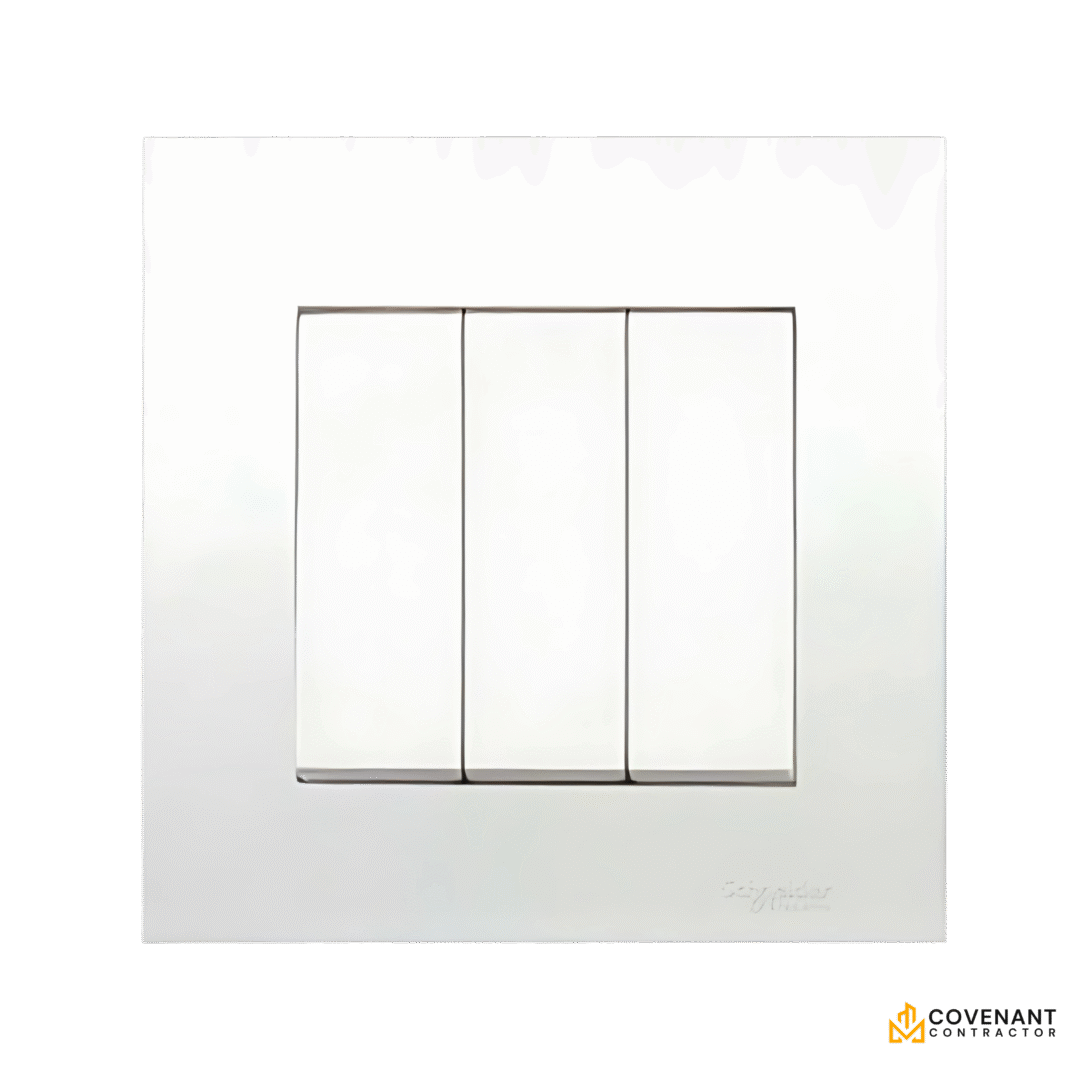

Type: 3-Gang 2-Way Switch
Current Rating: 16A total (10A per gang resistive)
Voltage Rating: 250V AC
Switching Configuration: 3x SPDT (Single Pole Double Throw)
Material: Flame-Retardant Polycarbonate (UL94 V-0)
Color: White (Ivory/Chrome options)
Terminals: Screw-clamp (accepts 1.5–4mm² conductors)
Certifications: CE, ROHS, SONCAP, IEC 60669
Key Features
✔ Triple Circuit Control: Independent 2-way operation for three lighting systems
✔ Heavy-Duty Rating: 16A total capacity for multiple fixtures
✔ Precision Mechanism: Smooth rocker action with positive engagement
✔ Safety Optimized: Reinforced insulation & finger-proof terminals
✔ Modular Design: Compatible with Vivace faceplates
Technical Performance
Contact Resistance: <0.03Ω per gang
Mechanical Life: 40,000 operations per gang
Dielectric Strength: 4000V AC withstand
Operating Temp: -5°C to +40°C
