Description

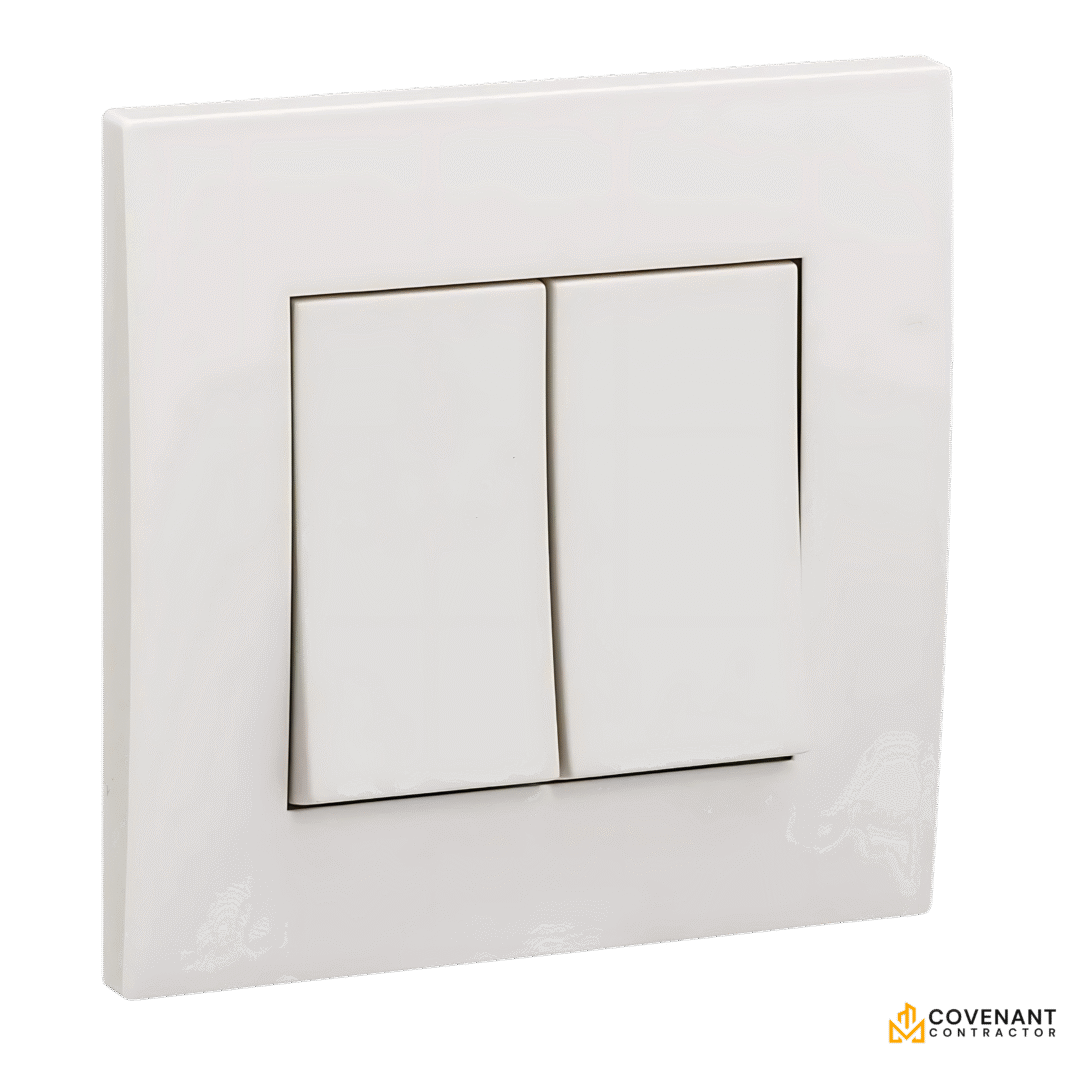

Dual-Circuit Switching – Smooth Tactile Operation – Modern Safety Design
Product Specifications
Brand: Schneider Electric
Model: Vivace Series
Type: 2-Gang 2-Way Switch
Current Rating: 10A per gang (resistive)
Voltage Rating: 250V AC
Mechanism: SPDT (Single Pole Double Throw) x2
Material: Flame-Retardant Polycarbonate (UL94 V-0)
Color: White (Ivory & Chrome variants available)
Terminals: Screw-clamp (accepts 1.5–4mm² conductors)
Certifications: CE, ROHS, SONCAP, IEC 60669
Key Features
✔ Dual Independent Control: Operate two lighting circuits from two locations
✔ High-Performance Contacts: Silver-alloy for minimal arcing
✔ Child Safety: Shrouded terminals (IP20 rated)
✔ Ergonomic Design: 16mm rocker with soft-click action
✔ Quick Wiring: Clearly marked L1/L2/Common terminals
Technical Performance
Mechanical Life: 40,000 operations per gang
Electrical Life: 20,000 cycles at rated load
Insulation Resistance: >100MΩ (500V DC)
Dielectric Strength: 2000V AC for 1 minute
