Description

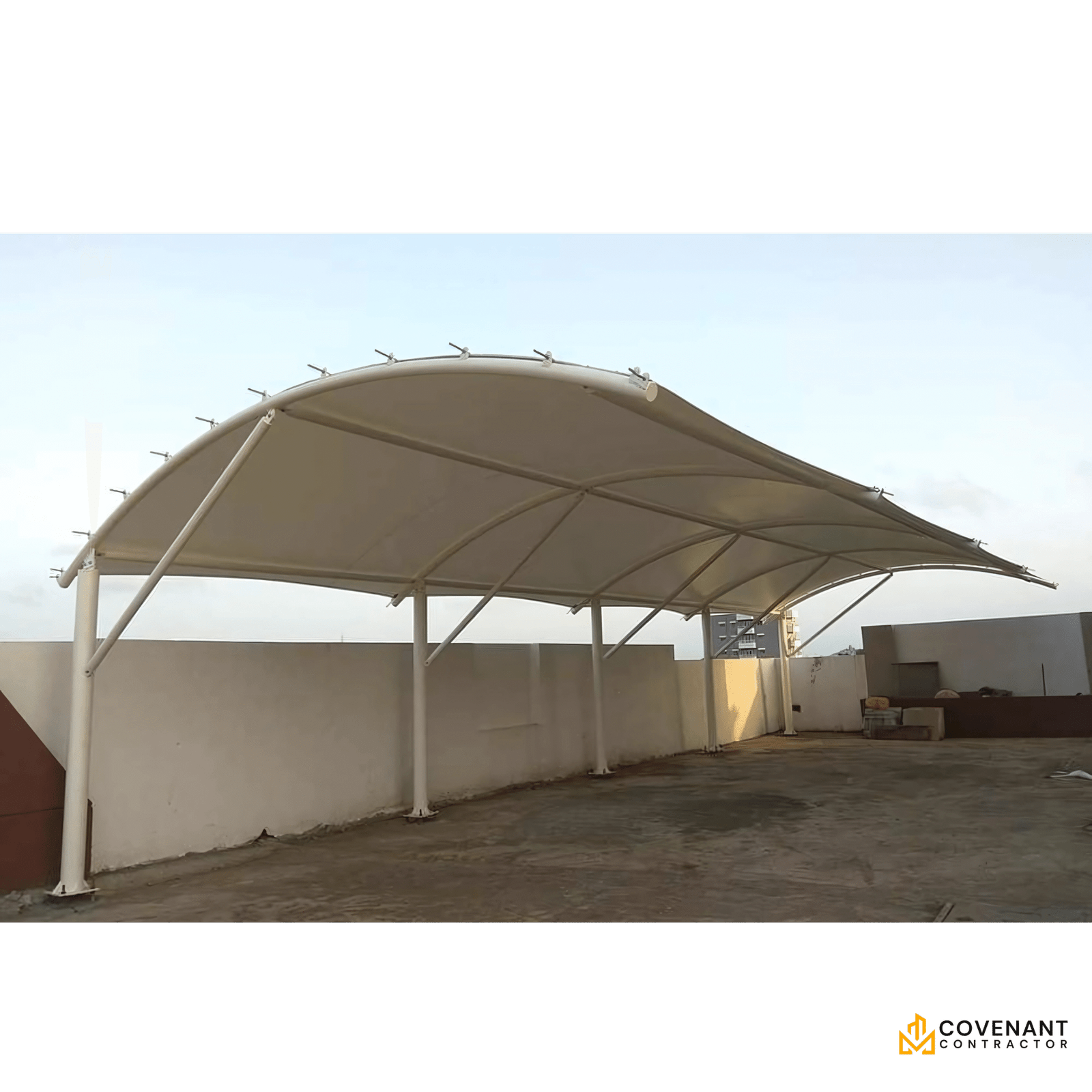

Modular Steel Structure – All-Weather PVC Canopy – Commercial/Residential Use
Product Specifications
Frame Construction:
-
Material: Galvanized steel square tubes
-
Dimensions: 80mm x 80mm x 3mm thickness
-
Surface Treatment: Powder coating (60-80μm)
-
Color Options: White, Grey, Blue, Green
Canopy Material:
-
High-density PVC fabric (900-1100gsm)
-
Thickness: 0.7-1.2mm
-
Treatment: UV-resistant, waterproof, fire-retardant
Standard Sizes Available:
| Model | Dimensions (L×W×H) | Vehicle Capacity |
|---|---|---|
| CPS-S | 3m × 6m × 3m | 1-2 cars |
| CPS-M | 6m × 12m × 3.5m | 4-6 cars |
| CPS-L | 10m × 20m × 4m | 8-10 cars |
Technical Parameters
Structural Performance:
-
Wind Resistance: Up to 100 km/h (properly anchored)
-
Snow Load: 40kg/m²
-
Waterproof Rating: 5500mm water column
-
UV Protection: Blocks 98% UV rays
Material Certifications:
-
ISO 9001:2015 Quality Certified
-
CE Marked
-
Fire Rating: B1 (DIN 4102)
-
Tensile Strength: 4500N/5cm
Key Features
✔ Heavy-Duty Protection
-
1.2mm thick PVC canopy with heat-welded seams
-
Reinforced corners and edges
-
Anti-rust galvanized steel frame
✔ Smart Design Elements
-
Optional gutter drainage system
-
Pre-installed mounting points for solar panels
-
Ventilation flaps for air circulation
✔ Easy Installation
-
Modular bolt-together system
-
No welding required
-
Detailed installation manual included
✔ Customization Options
-
Can print company logos on canopy
-
Choice of 8 standard colors
-
Optional side walls available
