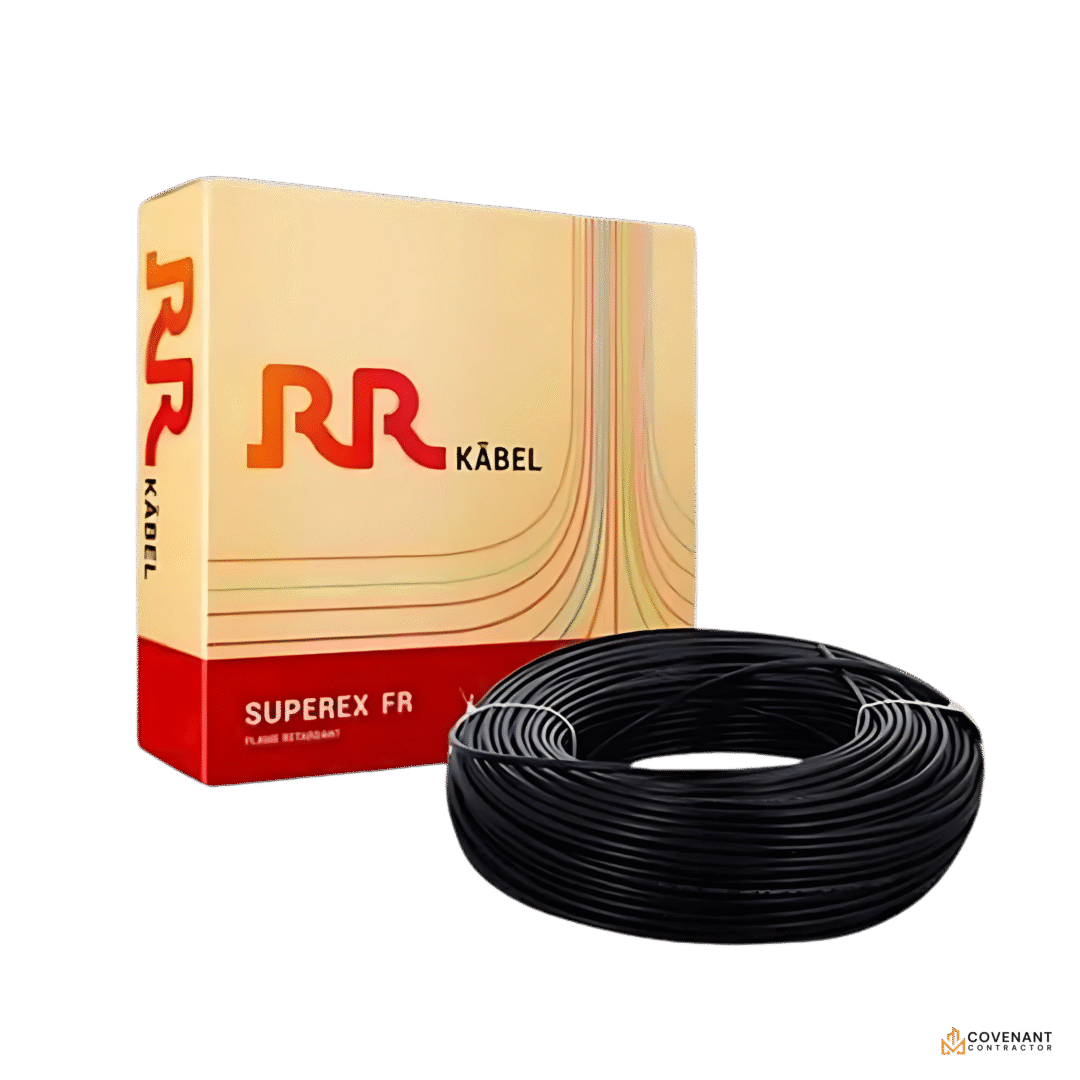

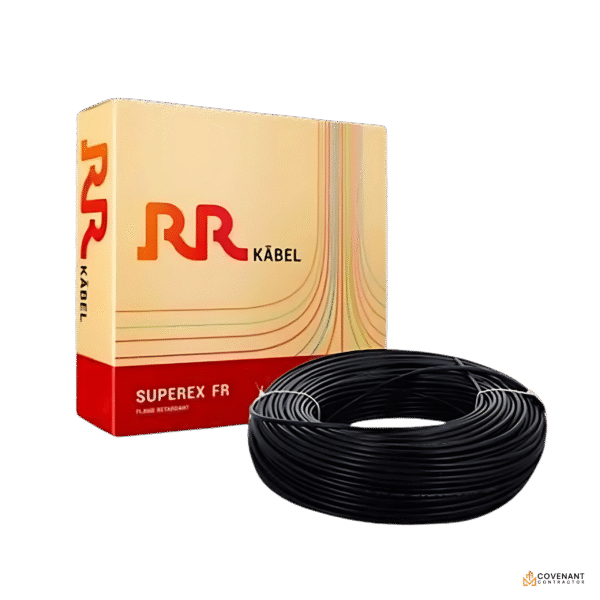

RR Cable 10mm² – Industrial-Grade Power Transmission Cable
Ultra-high capacity cable for extreme electrical loads and critical infrastructure
Technical Specifications:
✔ Conductor Size: 10mm² (61/0.45mm stranded copper)
✔ Current Rating: Up to 63A* (depends on installation method)
✔ Voltage Rating: 1100V AC / 1500V DC
✔ Insulation: Triple-layer PVC (FR/LSZH options available)
✔ Temperature Range: -20°C to +90°C
✔ Standards: IS 694, IEC 60228, BS 5467
Unmatched Features:
⚡ Mega Power Handling – Designed for 50-63A circuits
🛡️ Armored Version Available – Extra mechanical protection
🔥 Fire Survival – Can withstand 950°C for 3 hours (special grade)
🌧️ Weatherproof – UV-stabilized for outdoor/underground use
📏 Low Voltage Drop – <3% over 100m at full load
Premium Applications:
• Main building supply lines
• Three-phase distribution
• Heavy industrial machinery
• HVAC systems (central chillers)
• Data center power backbone
• Generator hookups
• Renewable energy systems
